The Zen Switch Box

Audiophile source selector

USAOriginal on Transparent copy.png

The Zen Switch Box

S I L V E R  W I R E D

Audio is a game of hearing your gear sound only as good as the weakest link in the chain! This  box is guaranteed to not be the weak link in your audio chain, even with interconnects costing thousands of dollars.  The reason for this is simple.  High mass steel chassis, pure silver /Teflon wire, silver switch contacts and hand soldered point to point with silver solder.

 4 INPUT ROTARY SOURCE SELECTOR WITH DUAL OUTPUTS

zswwitchw_edited_edited_edited_edited.jp

OVERVIEW

The Zen Switch-Box features 4 inputs and 2 outputs using silver contact switching combined with silver wire to give even the most picky audiophile a source selector that won't degrade his investment in hi-end interconnects.  Features a heavy gauge steel chassis with a black powder coat typewriter finish and removable bottom plate.

OPTIONS

The Zen Switch-Box can be configured with several options listed below.  These are selected from within the shopping cart.


Knob types: Ebony, Gold, Black chicken head, Cream chicken head, Walnut

ADDITIONAL SWITCHING

Output A/B switching can be added so that output only goes to one of the two sets of output jacks at a time.  A Stereo/Mono switch can also be added.

ADDITIONAL CONTROLS

A single or dual volume control or stepped attenuator can be added.

REMOTE CONTROL VOLUME

Instead of the volume control options listed above you can have a single remote control volume that operates both channels from a single remote.

RCA JACKS

Unit comes stock with high quality gold plated RCA jacks.  However we do also offer upgraded RCA jacks in both Gold and Silver.

SUGGESTED USES

  • Input source selector for 4 line level sources (LP in the pic above represents a phono stage).

  • Tonearm selector for up to 4 tonearms.

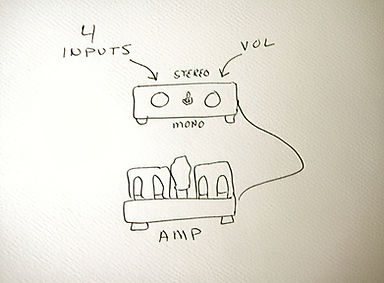

  • Use as a Passive pre-amp w/ optional volume control.

  • Add an optional stereo/mono switch.

  • Run it backwards so that one preamp can be sent to any
    one of four amplifiers.

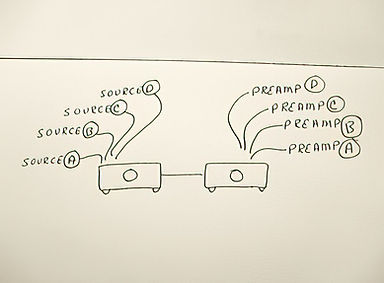

  • Run a pair back to back so that four sources can be sent
    to any one of four pre-amplifiers.

  • Use one of the dual outputs as a tape output.

  • Use backwards as an A/B switch for comparing cables on the fly.

  • By connecting the outputs from a second box to one of the input of the first you can have a total of 7 sources.

SPECIFICATIONS

Weight - 4 lbs. ( 6 lbs. with remote control volume )

Dimensions - 2.5" H x 6" W x 10.5" D

All Contacts -  Silver

Wire - Silver/Teflon

RCA jacks - Gold or Silver

SUPPORT

This switch box is hand built in the USA by DECWARE / High Fidelity Engineering Co. It comes with a lifetime warranty to the original owner. If you purchase one second hand and ever have questions or technical problems we WILL be happy to check it out for you and service it if needed for a very reasonable rate.

We have never sold this item as kit but that doesn't mean you won't find someone else's work inside if you buy one used.  If this is the case and the work and parts are anything less than what we would do, it will be removed and the ZBOX returned to it's like new condition at the present owner's expense.

MODEL ZSB

4 INPUT SILVER SOURCE SELECTOR

Made by hand in the USA and sold wholesale to the public with a
L i f e t i m e   W a r r a n t y  !

Starting at $420

Amps are hand-built to order.  There are presently lots of orders on our real time build sheet.   A 10% deposit secures your place on the list with today's date and time stamp.  Balance is due when it's ready to ship. You will be sent a final invoice with the total price including actual shipping costs by our office during your wait.
